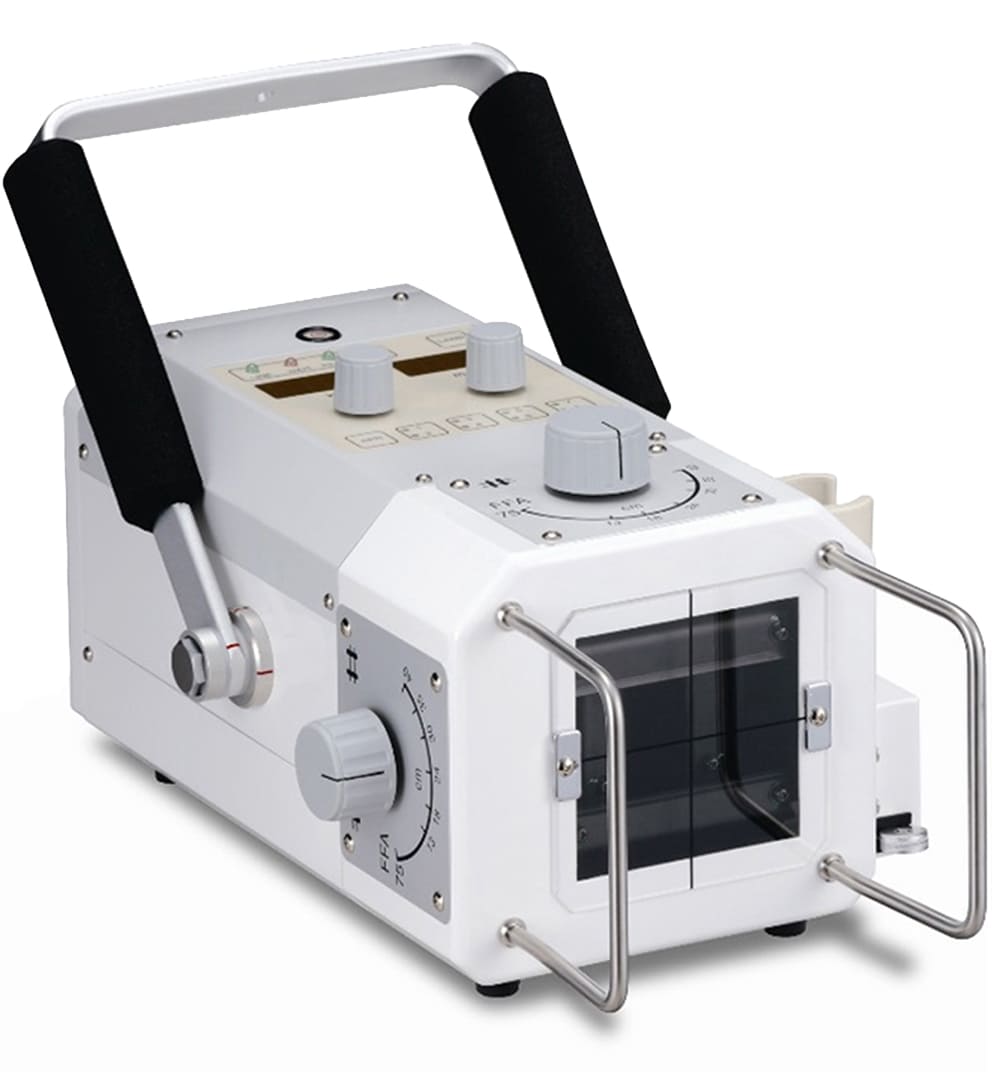

Portable X-ray unit
PORTA 100HF
This is our human use model in white body color which is suitable for emergency medical services.
JOBʼs 30 years of expertise, beginning with design and manufacturing of high-quality power supplies,
has been distilled into a reliable all-in-one portable X-ray unit.
FEATURES
-
01
Compact and light weight
All-in-one unit, including an X-ray generator, collimator and control circuit Easy to carry size and weight, only 158 (H) x 161 (W) x 291 (D) mm (without handle) and approx. 8.8 kg -
02
Portable
Easy to transport to a patient outside the hospital Allows X-ray imaging of different parts of the body -
03
High output
Up to 100kV 2kW output -
04
Quick setting
kV and mAs can be quickly changed by dual rotary knobs 8 pre-set programs enable the most suitable imaging for the patients Ready to use soon after power on Very little wait between X-ray shots -
05
Reliable
Based on JOB’s reliable technology for X-ray imaging in various elds The high-quality X ray tube is made in Japan The inverter-controlled generator provides stable X ray output Suf cient performance
SPECIFICATIONS
- Rating
-
30 mA / 40 – 66 kV / 0.3 – 20 mAs
20 mA / 68 – 100 kV / 0.3 – 20 mAs
- Generator
- Inverter control type, 2 kW output
- kV selection
-
40 – 100 kV (2 kV steps)
Rotary knob with 7-segment LED digital display
- mAs selection
-
0.3 – 50 mAs (total 32 settings)
0.3 – 2.0 (in 0.1 steps), 2.5, 3.2, 4.0, 5.0, 6.4, 8.0, 10, 12, 16, 20, 25, 32, 40,
and 50 mAs
- X-ray tube
-
Focal spot: 1.2 mm
Anode heat storage capacity: 14 kJ (20 kHU)
Target angle: 16 degrees
- Total filtration
- 2.5 mm Al
- Collimator
-
Field lamp with 30 second time
Cross indication lines
- Hand switch
- 2 steps, demand type with coiled cable (3 m long at full extension)
- AC cable
- 3 m
- Power requirements
- 100 – 120 VAC/ 30A or 200 – 240VAC/ 16A
- Ambient conditions
- Operation
-
Temperature: 10 – 40 ℃
Relative humidity: 30 – 85% (Non condensing)
Atmospheric pressure: 700 – 1060 hPa
- Transportation and storage
-
Temperature: -10 – 60 ℃
Relative humidity: 30 – 85% (Non condensing)
Atmospheric pressure: 700 – 1060 hPa
- Compositions
- Main unit, AC cable, Hand switch, Carrying case, User manual
